GSA T1800E 6000′ DOWNHOLE GEOPHYSICAL LOGGING UNIT
General Descriptions
Stand-alone, slimline, system – 6000′ depth capability unit for:
- Geophysical logging
- Casing inspection
- Dimensions: L9′ x W 5′ x H 5′
- Tare weight: 3840lbs
Borehole access options with [into borehole]:
- Sheave system direct to rig mast
- Static boom with pulley direct, into borehole
240VAC power by petrol generator OR external plug in point for:
- Drawworks
- 240NAC lighting, logging and maintenance components (external source cable connection option included)
Electrical system designed to meet strict Australian m ining standards
Turnkey option when supplied with logging tools, sources, calibration and ancillary devices and spare parts

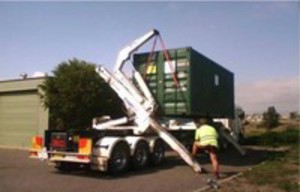

Field tested and available for immediate delivery anywhere in the world (FOB NSW Australia) in 20′ steel shipping container:
- Shipping dimensions: L20′ x W 8′ x H8′
- Shipping weight: 9520lbs
Optional onsite commissioning, com prehensive operational and maintenance training available

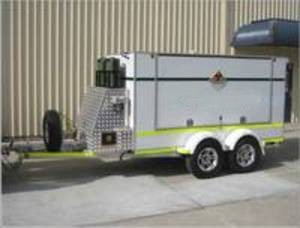

Body Build Components
Marlin tandem trailer
- Steel chassis and frame
- Aluminium sheeting
- Sheet steel floor
- Standard ball tow hitch
- 12NAC road safety lights
- Alloy wheels + spare wheel
- Jack up stabilisers
- Three side hinged doors
- Mechanical override-activated brakes
Drawworks Components
- Century Model VI 240VAC
- Drawworks controller box
- 6000′ (approx) Rochester 3/16″ diameter, 4 core, armoured wireline
- Terminated to a four pin Century cablehead
- Level winding system with fairleads to spool cable automatically
- Wireline feed through a 5″ measuring wheel system
- BEI optical depth encoder
- Mercotec model 430, 4 conductor slip rings (zero noise)
Borehole logging components
- PC based operating system
- Century System VI downhole power supply from surface to tool providing real time data monitoring capabilities
- High definition 21″ digital display
- Printrex thermal printer for fast, continuous, fanfold, strip log printing in the field
- IP66 moist and dusty conditions rated electrical connections
- Electrical leads- mechanically fixed and armoured against normal wear and damage
- Electrical system protection -master circuit breakers and RCDs with lockout facilities
- SP probe (mudfish)
Generator components
- Honda GX270 petrol generator (pull start)
- Thermo cooling fan
- Earth leakage stake
- 55Watt halogen light
- MCB/RCD1
Spare Parts
-
Cable head repair kit
-
Level wind pawls & Screws
-
1 HP electric drawworks motor
-
Drawworks gearbox
-
Drawworks speed controller
-
Ethernet cable
-
Grease gun + Molykote silicon grease
-
3″ angle grinder + grinding discs
-
10 x Rolls of electrical tape
-
1 gal Inox solution
Toolbox Items (Optional)
-
4 x shifting wrenches
-
2 x g-clamps
-
1 x hacksaw
-
1 x multigrips
-
2 x tape measures flathead
-
5 x screwdrivers Phillips head
-
2 x screwdrivers small
-
1 x Stillson wrench
-
1 x wire brush
-
1 x set of imperial ring spanners
-
1 x set of metric ring spanners
-
1 x set of imperial Allen keys
-
1 x set of metric Allen keys
-
1 x multimeter
-
1 x pliers
Other components
-
Full mine site safety decal package
-
Rubber floor mats
-
20lbs fire extinguisher plus mount
-
100′ triple insulated power cord plus storage reel
-
Side door restraining straps
-
Door stake
-
Jack brace
-
Rear pulley assembly
- Large alloy toolbox
- Small benc
- Cabin seat plus mounting frame
- Large sheave
- 55Watt halogen work lamp
- Water/fuel filter
- Bottle jack
- Funnel
- Siphon hose
- Jerry can
- Wheel brace
- Tool kit
- Sub and pulley
- Kingchrome Imperial & Metric 40 piece socket set
- Static boom
- Small air compressor
- Ratchet straps
- Bypass cable
- Rubber wheel chocks with joining ropes
- First aid kit
